Containerized Energy Storage

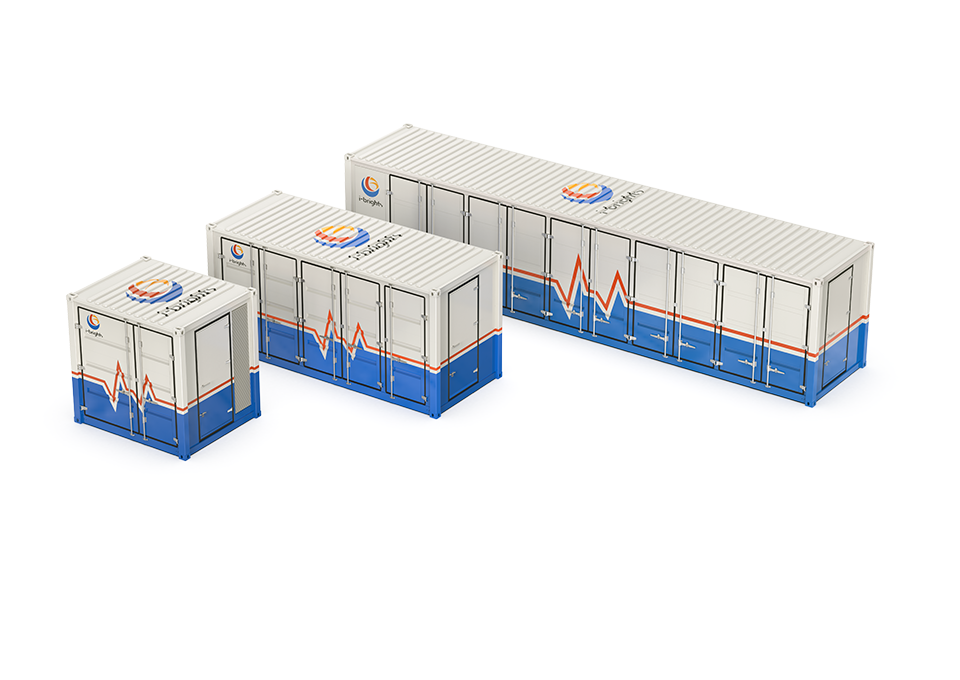

This series of battery energy storage system products are designed with standard containers such as 20 foot, 40 foot, 45 foot, etc., with built-in air conditioning, fire protection system, PCS, temperature control system, battery rack, etc., integrated design saves space and land, and combines industrial air conditioning. To ensure the safe and efficient operation of the system. Meet the requirements of the United States, Britain, Singapore, Australia and other countries, and the products have been widely used in Europe and the United States.
40-foot 20-foot 10-foot 45-foot

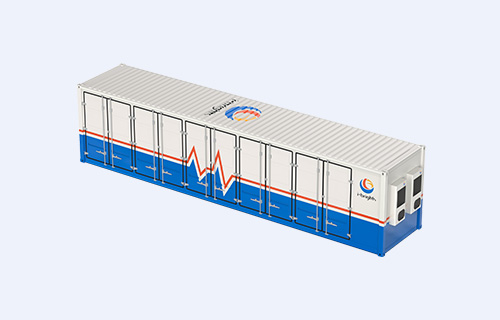

40-footProduct Parameter Table
Product
Parameters
Fire fighting
Automatic gas fire
Gas detection
Support H2, CO detection
Rated Capacity
2~4Mwh
Battery Type
Lithium Iron Phosphate
Discharge Rate
0.25~3C
Operating Voltage Range
900V— 1200V
Rated Voltage
DC1088V
Operating Environment Temperature
-20~55℃
Transport Temperature
-20~55℃
External Communication Method
Modbus RS485/CAN
Battery rack size (H * W * D)
2350mm*1250mm*1150mm
Container size
12000x2896x2430mm
Maintenance Method
Doors open on both sides
Cooling
Industrial air conditioning, air-cooled
Protection level
IP55
Fire-resistant Level
EI120

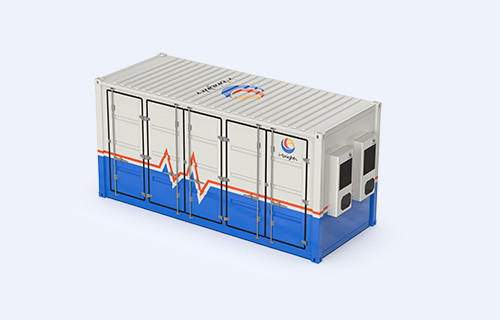

20-footProduct Parameter Table
Product
Parameters
Fire fighting
Automatic gas fire
Gas detection
Support H2, CO detection
Rated Capacity
0.5~1.5Mwh
Battery Type
Lithium Iron Phosphate
Discharge Rate
0.25~3C
Operating Voltage Range
900V— 1200V
Rated Voltage
DC1088V
Operating Environment Temperature
-20~55℃
Transport Temperature
-20~55℃
External Communication Method
Modbus RS485/CAN
Battery rack size (H * W * D)
2350mm*1250mm*1150mm
Container size
Maintenance Method
Doors open on both sides
Cooling
Industrial air conditioning, air-cooled
Protection level
IP55
Fire-resistant Level
EI120

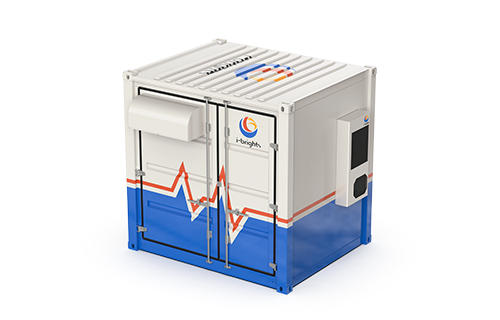

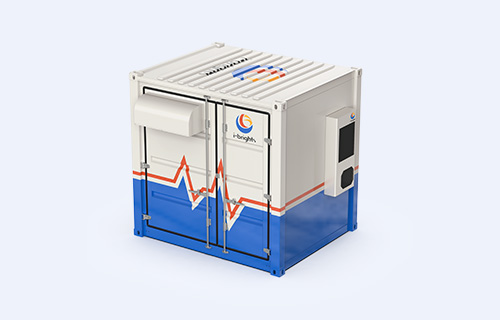

10-footProduct Parameter Table
Product
Parameters
Inverter Power
100KW
On-grid, off-grid
Support
Rated Capacity
200~500kwh
Battery Type
Lithium Iron Phosphate
Discharge Rate
0.25~3C
Operating Voltage Range
900V— 1200V
Rated Voltage
DC1088V
Operating Environment Temperature
-20~55℃
Transport Temperature
-20~55℃
External Communication Method
Modbus RS485/CAN
Container size
3000x2896x2430mm
Maintenance Method
Doors open on both sides
Cooling
Industrial air conditioning, air-cooled
Protection level
IP55
Fire-resistant Level
EI120
45-footProduct Parameter Table
Product
Parameters
Fire fighting
Automatic gas fire
Gas detection
Support H2, CO detection
Rated Capacity
4.2Mwh
Battery Type
Lithium Iron Phosphate
Discharge Rate
0.25~3C
Operating Voltage Range
900V— 1200V
Rated Voltage
DC1088V
Operating Environment Temperature
-20~55℃
Transport Temperature
-20~55℃
External Communication Method
Modbus RS485/CAN
Battery rack size (H * W * D)
2350mm*1250mm*1150mm
Container size
Maintenance Method
Doors open on both sides
Cooling
Industrial air conditioning, air-cooled
Protection level
IP55
Fire-resistant Level
EI120
